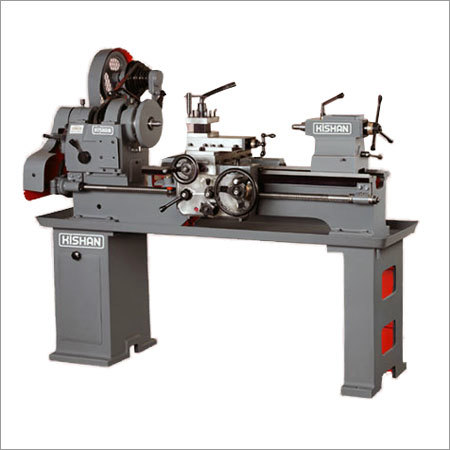

Light Duty Lathe Machine

Light Duty Lathe Machine
Light Duty Lathe Machine
Product Code : LDLM-05
Brand Name : K. K. TOOLS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Product Type
  • Horizontal
  • Material
  • C.I.
  • CNC Or Not
  • Normal
  • Automatic Grade
  • Manual
  • Control System
  • Manual
  • Max. Swing Diameter
  • 300 Millimeter (mm)
  • Voltage
  • 450 Watt/Volt ( w/v)
  • Weight (kg)
  • 450 Kilograms (kg)
Product Description

With the efforts and guidance of our team of skilled professionals, we able to Supply a wide range of Light Duty Lathe Machine. It is used in various industries for several applications. The offered machines is manufactured by utilizing the modern tools & techniques, quality-tested stainless steel and other materials, in sync with the international quality standards. Further, we are offering the Light Duty Lathe Machine in different specifications at competitive prices.

Features :

  • Top quality
  • Fine finishing
  • Durability
  • Accurate dimensions

Technical Specification :

Model


LD-A

LD-D

LD-F

Bed Length

mm/feet

1065/3.5

1375/4.5

1825/6

Admit Between centre

mm

375

685

1135

Weight (Approx.)

K.g

360

430

490

Dimension (Approx.)

(L x W x H)

1340 x 850 x1320

1650x850x1320

2100x850x1320

Detail Technical Specification for All Models are as Under

BED

Bed width

mm/inch

238/9.5

Bed Type

V/ Flate

2-Feb

Gap Length

mm

120

CAPACITY

Height of centre

mm/inch

178/7

Swing over bed

mm

355

Swing over cross slide

mm

180

Swing over gap

mm

580

SLIDES

Cross Slides Travel

mm

212

Compound slide travel

mm

110

Tool Shank section max

mm

20

MAIN SPINDLE

Spindle nose Dia

mm/ TPI

60/6

Spindle Sleeve nose

MT

3

Spindle Bore

mm/inch

38.1/1.5

Spindle Speed

No.

8

Spindle Range

RPM

40-800

Spindle drive 'V' Belt

Sec.-Size

B-42

Spindle motor power

HP / kw

1/0.75

Tail Stock

Quill dia

mm

38.1

Quill stroke

mm

120

Taper in Quill

MT

3

Threads

Threads Cutting Metric pitch

Nos./mm

13 / 1 to 6

Threads Cutting English

Nos. / TPI

19 / 2 to 24

Lead Screw Dia

mm /TPI

25.4/4

Standard Accessories :

  • Change gear set (Inch & mm), Dead centre ( 2 Nos.), Centre Adaptor, Chuck Flange, Tool post Key, Motor pulley

Options :

  • Electric motor, R/F Switch & V-Belt
  • True chuck & Dog chuck
  • Coolant pump, Tank and Assembly
  • Rear Tool post
  • Taper Turning Attachment
  • Norton Gear Box
  • Steady Rest
  • Follow Rest
  • Face plate
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)
  • Supply Ability
  • as per requirement Per Day
  • Delivery Time
  • 2 Week
  • Packaging Details
  • as per requirement
  • Main Domestic Market
  • All India
