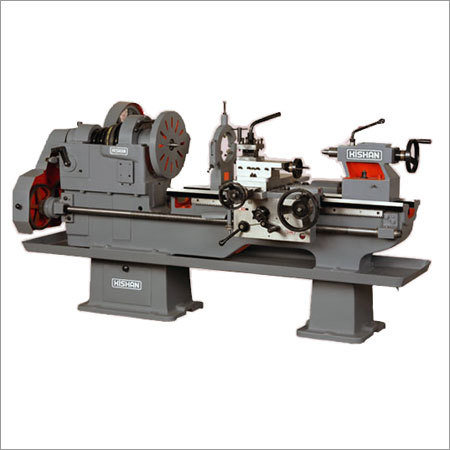

Heavy Duty Lathe Machine

Heavy Duty Lathe Machine
Heavy Duty Lathe Machine
Product Code : HDL03
Brand Name : K. K. TOOLS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
Our firm is renowned as a Manufacturer and Supplier of Heavy Duty Lathe Machine. It is highly appreciated due to its accurate dimensions and excellent performance. The offered machines are processed by using the finest quality components and innovative tools & techniques, under the directions of our talented professionals. We assure you to provide the high strength, durable and smooth functioning machines. Moreover, the Heavy Duty Lathe Machine is available to us at nominal rates.

Features :
  • Cost-effectiveness
  • Dimensional accuracy
  • Fine finishing
  • High durability

Technical Specification :

Model


HD-A

HD-B

HD-C

HD-D

HD-E

HD-F

HD-G

Bed Between Centre

mm/feet

1670/5.5

2130/7

2740/9

3040/10

3650/12

4260/14

4870/16

Admit Between centre

mm

535

990

1600

1900

2500

3125

3735

Spindle Motor Power

HP/kw

2/1.5

2/1.5

2/1.5

3/2.25

3./2.25

5/3.75

5/3.75

Weight (Approx.)

K.g

1165

1250

1360

1550

1715

2100

2350

Dimension (Approx.)

(L x W x H)

1990 x 1055 x
1370

2440 x 1065 x 1370

3350 x 1065 x 1370

3350 x
1065 x 1370

3960 x 1065 x 1370

4585 x
1065 x
1370

5185 x
1065 x
1370

Detail Technical Specification for All Models are as Under

BED

Bed width

mm/inch

323 / 12.75

Bed Type

V/ Flate

2-Feb

Gap Length

mm

165

Gap length in front of face plate

mm

175

CAPACITY

Height of centre

mm/inch

254/10

Swing over bed

mm

495

Swing over cross slide

mm

380

Swing over gap

mm

785

SLIDES

Cross Slides Travel

mm/inch

240

Compound slide travel

mm

140

Tool Shank section max

mm

25

MAIN SPINDLE

Spindle nose Dia

mm/ TPI

74.3/6

Spindle Sleeve nose

MT

4

Spindle Bore

mm/inch

54/2.125

Spindle Speed

No.

8

Spindle Range

RPM

25-450

Spindle drive 'V' Belt

Sec.-Size

C-71

Flat belt

mm

50 x 1980

Tail Stock

Quill dia

mm

58

Quill stroke

mm

190

Taper in Quill

MT

4

Threads

Threads Cutting Metric pitch

Nos./mm

13 / 1 to 6

Threads Cutting English

Nos. / TPI

19 / 2 to 24

Lead Screw Dia

mm /TPI

38/4

Standard Accessories :

Change gear set (Inch & mm), Dead centre ( 2 nos.), Centre adaptor, Chuck Flange, Face plate, Steady rest, Tool post Spanner & Motor pulley

Options :

  • Electric motor, R/F Switch & V-Belt
  • True chuck & Dog chuck
  • Coolant pump, Tank and Assembly
  • Rear Tool post
  • Taper Turning Attachment
  • Fully Norton Gear Box
  • Semi Norton Gear Box (3 Speed)
  • Bearing or Brass type Head stock
  • V-Belt or flat Belt Pulley
  • Extra bed Length ( From 5.1/2' to 20')
  • Extra bed Width ( From 12.3/4" to 20")
  • Extra height of centre ( From 10" to 20")
  • Extra spindle bore ( From 2.1/8" to 8.1/8")
